M5 Internal Lighting Suspension M10x1 Brass Cable Gripper
รายละเอียดสินค้า:
| สถานที่กำเนิด: | ตงกวนประเทศจีน |
| ชื่อแบรนด์: | w-mate |
| ได้รับการรับรอง: | SGS |
| หมายเลขรุ่น: | G951148 |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1,000 ชิ้น |
|---|---|
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | ถุง PE + ถุง PP + กล่อง (หากคุณมีข้อกำหนดอื่นๆ โปรดติดต่อเรา) |
| เวลาการส่งมอบ: | 10-15 วันทำงาน |
| เงื่อนไขการชำระเงิน: | ที/ที, เวสเทิร์นยูเนี่ยน |
| สามารถในการผลิต: | 100,000pcs/เดือน |
|
ข้อมูลรายละเอียด |
|||
| ชื่อสินค้า: | ผู้จัดจำหน่ายกริปล็อค | วัสดุ: | ทองเหลือง |
|---|---|---|---|
| โครงสร้างสายเคเบิล:: | 7x7 หรือ 7x19 | การใช้งาน: | แสงแขวน |
| ปริมาณการสั่งซื้อขั้นต่ำ: | 1,000 ชิ้น | เวลานำ: | 7 วันหากมีวัสดุเพียงพอในสต็อก |
| ตัวอย่าง: | ตัวอย่างฟรี (โปรดติดต่อฝ่ายบริการลูกค้าของเรา) | ||
| เน้น: | M10x1 Brass Cable Gripper,Lighting Suspension Brass Cable Gripper,M5 Internal Brass Cable Gripper |
||
รายละเอียดสินค้า
Description:

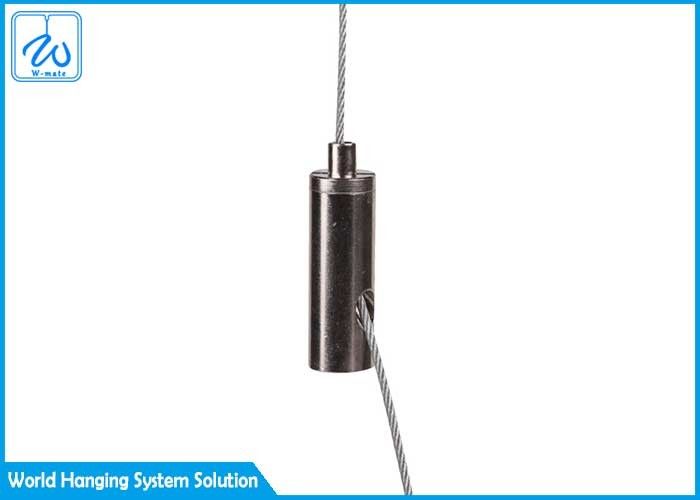

The adjustable cable gripper is inside the holder, via a unique clutch braking mechanism,
This creates a very easy, practical and simple wire rope holder.
With this Cable Gripper you can reuse it and be environmentally friendly and reduce waste!
Properties:
| item | parameters | Remarks |
| Box quantity | 500 | This is the smallest full box packaging of a product. Useful if want to order full boxes. |
| Brand | W-mate | We can accept ODM/OEM and can customize the brand for you. |
| Colour | Nickel | The most common color in the product. |
| Diameter | 9mm | The diameter at the widest point measured. |
| Material | Brass | Material of which the major part of the product is made. |
| Mounting attachement | M5 internal | The dimensions or art of the mounting hole or thread. Note M8x1, M10x1 and M13x1 are fine metric and not eqal to the standard thread! |
| Part | Adjuster | Each component is a classified articles. |
| Safety cap | No | Een borging zorgt ervoor dat de verstelbus pas versteld kan worden als deze is losgedraaid. Na losdraaien kan de verstelnippel in gedrukt worden. Als de juiste hoogte is ingesteld kan de borging weer worden vastgedraaid. is een extra beveiliging. |
| Suitable for wire diameter | 120 - 150mm | This part is suitable for a wire which is within these diameter |
Description of cable:
The cable is cut via electric arc system so that the ends are welded in a conical shape and do not become frayed. This promotes insertion in the gripper body without blocking.
Cutting the cable in any point with a cable cutter results in unwound frayed aspect, becoming almost impossible to reassemble the cable via welding or gluing.
OEM/ODM:
The products are widely used in lighting installation, architectural suspension, art display, display stands, etc.
We have a professional design team that can either design suspension application solutions for you or customize products according to your needs.
The service concept of "wisdom and humanity are moving in the same direction, and technology is progressing in step with the world" to meet the different needs of customers and create brilliant careers.
OEM/ODM:
The company mainly produces hanging hardware accessories, and our products mainly include cable gripper, ceiling hangings accessories, display systems, wire ropes, etc.
The products are widely used in lighting installation, architectural suspension, art display, display stands, etc.
We have a professional design team that can either design suspension application solutions for you or customize products according to your needs.
The service concept of "wisdom and humanity are moving in the same direction, and technology is progressing in step with the world" to meet the different needs of customers and create brilliant careers.
Cable Gripper Instructions:
When in use, just press the button on the top of the holder to pass the cable through the holder,
Release the button when the required length is reached,
The wire rope can be locked,
To adjust, press the button to move the wire rope.
If you need customized products, please contact our customer service,
Can design professional suspension scheme for you!
Can you picture your new design already? Great, get in touch with us and we’ll be happy to help arrange all the cable support fittings you need!
